Research Article
Application of Silver Nanoparticles for the Spectrophotometric Determination of Cefdinir and Cefepime HCl in Pharmaceutical Preparations and Human Urine Samples
Walaa El-Alfy *, Omnia Ahmed Ismaiel, Magda Youssef El-Mammli, Abdalla Shalaby
Department of Analytical Chemistry, Faculty of Pharmacy, Zagazig University, Zagazig 44519, Egypt.
* Corresponding author. E-mail: Walaa.alfy78@gmail.com
Received: Jul. 19, 2019; Accepted: Nov. 27, 2019; Published: Dec. 13, 2019
Citation: Walaa El-Alfy, Omnia Ahmed Ismaiel, Magda Youssef El-Mammli, and Abdalla Shalaby, Application of Silver Nanoparticles for the Spectrophotometric Determination of Cefdinir and Cefepime HCl in Pharmaceutical Preparations and Human Urine Samples. Nano Biomed. Eng., 2019, 11(4): 381-390.
DOI: 10.5101/nbe.v11i4.p381-390.
Abstract
In this work, the application of silver nanoparticles (Ag NPs) for spectrophotometric determination of cefdinir (CFD) and cefepime HCl (CFP) was developed. The method was based on the ability of the alkaline degradation products of the cited drugs to reduce Ag+ ions to silver nanoparticles (Ag-NPs) in the presence of gelatin as a capping agent. The linear concentration ranges were 5.0 - 40 and 10 - 100 µg/mL for cefdinir and cefepime HCl, respectively. The lower detection limits were found to be 0.39 and 1.06 µg/mL for CFD and CFP, respectively, while the quantitation limits were found to be 1.18 and 3.21µg/mL for CFD and CFP, respectively. The formed nanoparticles were characterized by ultraviolet-visible spectroscopy and transmission electron microscopy. The proposed method was applied successfully to determination of CFD and CFP in pure drugs, pharmaceutical preparations and human urine samples.
Keywords: Silver nanoparticles; Cefdinir; Cefepime HCl; Human urine samples
Introduction
Cefdinir is a third-generation oral cephalosporin antibiotic. It is chemically
(6R,7R)-7-[[(2Z)-2-(2-Amino-4-thiazolyl)-2-(hydroxyimino)acetyl]amino]-3-ethenyl-8-oxo-5-thia-1-azabicyclo[4.2.0]oct-2-ene-2-carboxylic acid monohydrate [1]. Cefdinir is not considerably metabolized and is excreted in the urine with an elimination half-life of 1.7 hours [2]. Cefepime hydrochloride is one of the fourth generation of cephalosporin antibiotics. It is chemically 1-[[(6R,7R)-7-[2-(2-amino-4-thiazolyl)-glyoxylamido]-2-carboxy-8-oxo-5-thia-1-azabicyclo[4.2.0]oct-2-en-3-yl]methyl]-1-methylpyrrolidinium chloride, 72-(Z)-(O-methyloxime), mono-hydrochloride, monohydrate [1]. Cefepime is widely distributed in body fluids and tissues; it is excreted principally by the kidneys and about 85% of a dose is recovered as intact drug in the urine [2]. Both drugs are resistant to beta-lactamase. They have an extended spectrum of activity against gram-positive and gram-negative bacteria due to binding to penicillin-binding proteins, causing thickening of the bacterial cell wall and breakage at the binding site, thereby causing cell death [3]. They are used for the treatment of moderate-to-severe infections, such as pneumonia, febrile neutropenia, skin and soft tissue infections, urinary tract infections and intra-abdominal infections [4]. Different analytical methods have been applied for the determination of cefdinir in biological fluids and pharmaceutical products such as HPLC [5, 6], HPTLC [7], spectrophotometry [3, 7], spectrofluorimetry [8], voltammetry [9, 10] and capillary electrophoresis [11]. Cefepime or its content of N-methyl pyrrolidine were also determined by several methods such as HPLC [12, 13], MEKC [14, 15], GC [16, 17], TLC [18, 19], ion chromatography [20, 21], spectrophotometry [22, 23], spectrofluorimetry [24, 25], voltammetry [26], capillary electrophoresis [27, 28] and chemilluminescence [29]. Nanoparticles made of silver have been the focus of interest in many researches due to their antimicrobial [30] and drug targeting applications [31]. They can be also used for drug analysis owing to their electrical [32] and optical [33] properties. These nanoparticles, in liquid media, have a strong UV–visible extinction band that is absent in the spectrum of the bulk metal. Literature revealed that silver nanoparticles had been utilized for determination of many drugs in pure form, pharmaceutical products or in biological fluids such as cephalosporins [34], benzimidazole drugs [35], acetaminophen and gentamicin [36], teicoplanin [37], phenytoin [38], diosmin and rutin [39], 6-aminopenicillanic acid (APA) [40]. In this work, silver nanoparticles capped with gelatin [41] were firstly used in quantitative determination of cefdinir and cefepime HCl using green, simple, sensitive, effective and validated procedures easily applied in human urine samples without interference from urine matrix components.

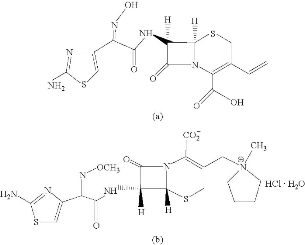

Scheme 1 (a) Chemical structure of cefdinir; (b) Chemical structure of cefepime HCl.
Experimental
Materials and reagents
Chemicals used were of analytical grade. Cefepime hydrochloride was obtained from Chemical Industrial Development (Cid), El Haram, Giza, Egypt. Cefdinir was obtained from Bristol-Myers Squibb Pharmaceutical Co., Cairo, Egypt. Silver nitrate was obtained from Aldrich Chemical Co. Ltd, used as 10-2 M aqueous solution. Gelatin was obtained from El-Nasr Chemical Company, Egypt, used as 1.0% w/v aqueous solution. Sodium hydroxide was obtained from El-Nasr Chemical Company, Egypt, used as 0.1, 0.5 and 1.0 M aqueous solutions. Cefepime® vial labelled to contain 1000 mg cefepime hydrochloride was obtained from Pharco B International, Alexandria, Egypt. Dinar ®capsules labelled to contain 300 mg cefdinir per capsule were obtained from Kahira Pharma Co. for Adwia Co. S.A.E., 10th of Ramadan City, Egypt.
Instrumentation
A Shimadzu ultraviolet-visible (UV-VIS) spectrophotometer UV 1800 (Japan) with matched 10 mm quartz cell was employed for all absorbance measurements. A JEOL-2100 transmission electron microscope at 200 kV (Japan) was employed for transmission electron microscopy (TEM) examination at Mansoura University.
Preparation of standard and working solutions
Stock solution of 1.0 mg/mL of cefdinir was prepared by dissolving 25 mg of the pure drug in about 2. 5 mL 1.0 M NaOH and then completed to 25 mL with bidistilled water. Stock solution was further diluted with bidistilled water to prepare the working solution at 500 μg/mL. Stock solution of 2.0 mg/mL of cefepime hydrochloride was prepared by dissolving 20 mg of the pure drug in 10 mL bidistilled water. Working solution of 1.0 mg/mL was prepared by dilution of stock solution with bidistilled water.
Preparation of calibration standards and quality control samples
Calibration standards were prepared in bidistilled water at eight concentration levels of 5.0, 10, 15, 20, 25, 30, 35 and 40 μg/mL of cefdinir and at ten levels of 10, 20, 30, 40, 50, 60, 70, 80, 90 and 100 μg/mL of cefepime hydrochloride. Low, medium and high quality control (QC) samples were prepared at concentrations of 15, 25 and 35 μg /mL and of 30, 50 and 70 μg/mL for cefdinir and cefepime hydrochloride, respectively. Urine samples were prepared in blank human urine (diluted with water 1:1 v/v) at six concentration levels of 10, 15, 25, 30, 35 and 40 μg/mL and at eight levels of 10, 20, 30, 40, 50, 70, 80 and 100 μg/mL for CFD and CFP, respectively.
Preparation of pharmaceutical tablets working solutions
Dinar® capsules
The content of five capsules were mixed well and a certain amount of powder equivalent to 150 mg pure drug was extracted in 50 mL flask with 1.0 mL 1.0 M NaOH, then shaken with 10 mL bidistilled water. The content of flask was diluted to the mark with bidistilled water to prepare 3.0 mg/mL stock solution, then filtered. Stock solution was further diluted with bidistilled water to give 500 μg/mL working solution.
Cefepime® vial
Specific amount of powder for injection equivalent to 50 mg was dissolved in 50 mL bidistilled water to give 1.0 mg/mL stock solution.
Preparation of urine samples
Cefdinir
Blank urine (obtained from healthy non-smoking volunteers) was thawed at room temperature, mixed well, filtered through MS® PTFE 0.45 µm syringe filters to avoid the interference from urine components and then diluted with bidistilled water to prepare 1:1 v/v urine pool. Urine working solution of 500 μg/mL cefdinir was prepared by mixing equal volumes of stock solution and urine pool. Urine samples were prepared by spiking drug free urine (diluted urine 1:1 v/v in bidistilled water) with different volumes of the urine working solution. 1 mL of each urine sample was subjected to the general procedures as mentioned below.
Cefepime hydrochloride
The same procedures as for cefdinir were applied, but the urine working solution was prepared at a concentration of 1.0 mg/mL cefepime HCl.
General procedure
Silver-gelatin solution was prepared by mixing 15 mL of silver nitrate (10-2 M) solution with 25 mL gelatin (1.0% w/v) solution in 50 mL volumetric flask. Then, pH was adjusted at 9 or 10 using 0.1 M NaOH for cefdinir and cefepime hydrochloride, respectively. The volume was completed to the mark with bidistilled water, mixed well and protected from light by aluminum foil. In 10 mL volumetric flasks, different volumes of the cited drugs were added, followed by 2 mL of 0.5 M NaOH and heated in boiling water bath for 20 or 25 min for CFD and CFP, respectively. After cooling, specific volumes of silver-gelatin solution (3.0 or 4.0 mL for CFP and CFD, respectively) were added; flasks were shaken and kept for five minutes, and then diluted to the mark with bidistilled water. Absorbance was measured at the suitable wavelength against reagent blank treated similarly.
Results and Discussion
In this study, alkaline degradation products of cefdinir and cefepime hydrochloride acted as effective reducing agents for the reduction of silver metal salt (Ag+) to the Ag NPs capped with gelatin in alkaline medium as shown in Scheme 2.
Scheme 2 Proposed reaction mechanism of studied cephalosporins with silver-gelatin complex.
Optimization of reaction conditions
Effect of hydrolysis time
The studied drugs were heated for different heating times in a boiling water bath (at 100 °C), and the reaction was carried out as usual. The effect of hydrolysis time on the absorption intensity was studied. Heating for about 20 and 25 minutes for cefdinir and cefepime hydrochloride (at 100 °C) gave maximum absorption intensity (Fig. 1).
Fig. 1 Effect of hydrolysis time on the absorbance of Ag-NPs formed in the presence of 30 μg/mL CFD and 60 μg/ mL CFP.
Effect of NaOH concentration
Sodium hydroxide concentration affected absorption intensity throughout the study. A wide range of NaOH molarities (0.1-4.0 M NaOH) was used and different volumes of the selected NaOH molarity were tried (0.5-5.0 mL). It was found that maximum absorption readings were obtained upon using 2.0 mL 0.5M NaOH for both analytes. (Fig. 2).
Fig. 2 Effect of volume 0.5 M NaOH on the absorbance of Ag NPs formed in the presence
of 30 μg/mL CFD and 60 μg/mL CFP.
Effect of pH of the working reagent solution
The effect of pH on the reduction of silver-gelatin complex was studied over the pH range of 7- 11 .Gelatin was effectively bound to silver at pH higher than 7. Solutions of pH greater than 11 were not suitable as they caused hydrolysis of gelatin solution [42]. The optimum results were obtained at pH 9 and 10 for cefdinir and cefepime hydrochloride, respectively.
Effect of silver nitrate concentration
Different solutions of silver-gelatin complex were prepared at the selected pH by varying the concentration constant. The silver nitrate concentration (10‾3 - 2×10‾2 M) keeping the gelatin optimum concentration was 10 ‾2 M for both drugs.
Effect of gelatin concentration
Gelatin acts as a protective colloid to prevent the precipitation of the black silver metal and as a stabilizer for the yellow silver sol. The effect of gelatin concentration was studied by preparing working reagent solutions containing different gelatin concentrations at 0.5 - 2.5% w/v and keeping the silver nitrate concentration constant. It was found that maximum absorption readings were obtained upon using 1.0% w/v for both drugs.
Effect of working reagent solution volume
The working reagent solution (0.5 - 4.0 mL) were tried. Different volumes showed that 4.0 mL and 3.0 mL of the reagent could give the maximum color intensity for cefdinir and cefepime hydrochloride, respectively (Fig. 3).
Fig. 3 Effect of volume of working reagent solution on the absorbance of Ag NPs formed in the presence of 30 μg/mL CFD and 60 μg/mL CFP.
Effect of reaction time
The time required for formation of Ag NPs was studied. It was found that after addition of the working reagent solution, flasks should stand before dilution for 5 min for both drugs which was a sufficient time for the complete reaction (Fig. 4).
Fig. 4 Effect of volume of working reagent solution on the absorbance of Ag NPs formed in the presence of 30 μg/mL CFD and 60 μg/mL CFP.
Stability
Absorbance of Ag NPs formed in the presence of cefdinir and cefepime hydrochloride could be measured immediately after dilution with water giving stable readings for 50 min.
Fig. 5 Stability of Ag NPs formed in the presence of 30 μg /mL CFD and 60 μg/mL CFP.
Physical characterization of silver nanoparticles
UV-Vis spectrophotometry
Structural characterization of Ag NPs could be provided by spectrophotometric analysis as silver colloids exhibit characteristic spectra in the UV-Vis region due to the surface plasmon excitation. In the absence of reducing agents, there was no absorption peak in visible region. After reacting with the alkaline degradation products of the cited drugs, silver ions were reduced to Ag NPs which showed characteristic absorption spectra of the colloidal solution of silver as shown in Fig. 6.
Fig. 6 (a) Absorbance of blank solution. (b) Absorbance of Ag NPs formed in the presence of 30 μg/mL cefdinir. (c) Absorbance of Ag NPs formed in the presence of 70 μg/mL cefepime HCl.
Transmission electron microscope (TEM)
The TEM image proved the formation of silver nanoparticles which were spherical in shape with smooth surface morphology and size of 14.93 ± 6.06 nm as shown in Fig. 7.
Fig. 7 TEM image of silver nanoparticles formed in the presence of CFD.
Method validation
The method was validated according to ICH guidelines on the validation of analytical methods [43].
Linearity
According to the optimized experimental conditions, standard calibration curves were constructed by plotting absorbance against concentration showing good linearity. The concentration ranges, correlation coefficient, slope and intercept for the calibration curve were calculated.
Limit of quantitation and detection
The limit of quantitation (LOQ) and the limit of detection (LOD) for the proposed method were calculated according to the ICH [43] using the following equations:
LOQ = 10 σ/S; and
LOD = 3.3 σ/S,
where σ = standard deviation of replicate blank responses (under the same conditions as for sample analysis), and S = slope of the calibration curve. According to the previous equations, LOD and LOQ were calculated as in Table 1. Their values confirmed the sensitivity of the proposed method.
Table 1 Characteristic parameters for determination of CFD and CFP using Ag NPs formation method
Parameter |
Cefdinir |
Cefepime HCl |
λmax (nm) |
360 |
350 |
Volume of AgNO3-gelatin complex |
4.0 mL |
3.0 mL |
Volume of NaOH (0.5 M) |
2.0 mL |
2.0 mL |
Heating time |
20 min |
25 min |
Beer's law limits (μg/mL) |
5.0 - 40 |
10 - 100 |
* Regression equation Slope (b) Intercept (a) Correlation coefficient (r2) |
0.0262 -0.0127 0.9999 |
0.0113 0.0043 0.9998 |
LOD (μg/mL) LOQ (μg/mL) |
0.391 1.184 |
1.06 3.213 |
* A = a + bc
Accuracy
Accuracy of the method was calculated as the recovery percentages of pure drugs at three concentration levels covering the low, medium and higher ranges of the calibration curve as shown in Table 2.
Table 2 Precision data for determination of CFD and CFP using Ag NPs formation method
QC conc. (µg/mL) |
Intra-day (n = 9) |
Inter-day (n = 9) |
||||||
|
Mean (µg/mL) |
SD |
RSD (%) |
Er% |
Mean (µg/mL) |
SD |
RSD (%) |
Er (%) |
Cefdinir |
||||||||
15 |
14.97 |
0.14 |
0.92 |
-0.2 |
14.7 |
0.12 |
0.83 |
-2.03 |
25 |
25.13 |
0.096 |
0.38 |
0.52 |
25.1 |
0.24 |
0.95 |
0.4 |
35 |
35.19 |
0.23 |
0.66 |
0.54 |
35.17 |
0.28 |
0.8 |
0.49 |
Cefepime HCl |
||||||||
30 |
29.86 |
0.18 |
0.62 |
-0.47 |
30.33 |
0.23 |
0.77 |
1.1 |
50 |
49.91 |
0.22 |
0.45 |
-0.18 |
49.94 |
0.34 |
0.67 |
-0.12 |
70 |
69.12 |
0.22 |
0.32 |
-1.26 |
69.27 |
0.23 |
0.34 |
-1.04 |
Precision
Precision was carried out by three determinations at three different concentrations of both drugs in the same day (intra-day), and in three different days (inter-day). Percentage of relative standard deviation (RSD%) as precision and percentage relative error (Er%) as accuracy of the suggested method were calculated. The percentage relative error was calculated using the following equation:
Er% = [(found − added)/added] × 100.
The results of precision showed that the proposed methods had good repeatability and reproducibility as shown in Table 2.
Robustness
Robustness was examined by studying the influence of small variations in one of the experimental parameters, keeping the others constant, on the analytical performance of the proposed method. The studied parameters were working reagent solution volume, NaOH solution volume and heating times (Table 3).
Table 3 Robustness of the proposed method using concentration of 25 µg/ mL CFD and 50 µg/mL CFP
Parameter |
Cefdinir |
Cefepime HCl |
||||
Silver-gelatin soln volume (mL) |
3.9 |
4.0 |
4.1 |
2.9 |
3.0 |
3.1 |
Recovery (%) ± SD a |
101.48 ± 0.31 |
101.43 ± 0.23 |
99.68 ± 0.15 |
100.3 ± 0.47 |
100.06 ±0.37 |
99.71 ±0.89 |
NaOH volume (mL) |
1.9 |
2.0 |
2.1 |
1.9 |
2.0 |
2.1 |
Recovery (%) ± SD a |
99.29 ± 0.23 |
100.72 ± 0.15 |
100.41 ± 0.15 |
99.59± 0.18 |
99.83± 0.27 |
100.12± 0.18 |
Heating time (min) |
18 |
20 |
22 |
23 |
25 |
27 |
Recovery (%) ± SD a |
100.67 ± 0.38 |
100.41 ± 0.15 |
100.36 ± 0.23 |
100.65 ± 0.35 |
100.12 ± 0.35 |
100.83 ± 0.47 |
a Average of three determinations.
Statistical analysis
The results of the proposed method were compared with those obtained from the reported methods [44, 45] using Student's t-test and F-test (at 95% confidence level). Results showed there were no significant differences between the proposed and reported methods as shown in Table 4.
Table 4 Statistical analysis of the proposed method in standard solution and the reported methods [44, 45]
|
Cefdinir |
Cefepime HCl |
||
|
Proposed Method |
Reported method [44] ** |
Proposed method |
Reported method [45] *** |
Mean |
99.76 |
99.62 |
99.47 |
98.61 |
SD |
0.82 |
0.96 |
0.8 |
0.99 |
RSD (%) |
0.82 |
0.96 |
0.81 |
0.99 |
Variance |
0.68 |
0.92 |
0.64 |
0.97 |
N |
8 |
7 |
10 |
5 |
F – test |
1.37 (3.87)* |
-- |
1.51 (3.63)* |
-- |
Student's t- test |
0.32 (2.16) * |
-- |
1.83 (2.16) * |
-- |
* Figures between parenthesis represent the corresponding tabulated values of t and F at P = 0.05.
** Spectrophotometric method based on measurement of CFD absorbance in 0.1 N HCl at 281 nm.
*** Spectrophotometric method based on condensation of CFP with NQS and measurement of absorbance at 475 nm.
Application
The proposed method could be successfully applied for the determination of the cited drugs in their pure forms, pharmaceutical preparations, and in urine samples. Good recoveries were obtained without interference from pharmaceutical preparations excipients or urine endogenous matrix components. Monitoring of the cited drugs in urine samples did not require any extraction procedures, providing a green, simple and time consuming method (Table 5 and 6).
Table 5 Application of standard addition method for determination of the cited drugs in pharmaceutical formulations
Pharmaceutical Preparation |
Dinar® capsules |
Cefepime® vials |
||||||
|
Claimed taken (µg/mL) |
Authentic added (µg/mL) |
Found (µg/mL) |
Recovery (%) |
Claimed taken (µg/mL) |
Authentic added (µg/mL) |
Found (µg/mL) |
Recovery (%) |
|
10 |
-- |
9.85 |
98.55 |
20 |
-- |
20.06 |
101.19 |
|
5 |
5.03 |
100.53 |
|
10 |
10.06 |
98.85 |
|
|
10 |
9.84 |
98.36 |
|
20 |
20.15 |
99.87 |
|
|
15 |
14.84 |
98.91 |
|
30 |
30.77 |
101.98 |
|
|
20 |
19.87 |
99.37 |
|
40 |
40.24 |
100.15 |
|
|
30 |
29.65 |
98.82 |
|
50 |
49.18 |
99.59 |
|
|
|
|
|
|
|
70 |
71.39 |
101.73 |
|
|
|
|
|
|
80 |
81.57 |
101.74 |
Mean |
|
99.09 |
|
100.64 |
||||
SD |
0.79 |
1.17 |
||||||
SE |
0.35 |
0.44 |
||||||
RSD |
0.79 |
1.17 |
||||||
Variance |
0.62 |
1.37 |
Table 6 Application of the proposed method for determination of the cited drugs in spiked urine samples
Drug |
Cefdinir |
Cefepime HCl |
||||
|
Claimed taken (µg/mL) |
Found (µg/mL) |
Recovery (%) |
Claimed taken (µg/mL) |
Found (µg/mL) |
Recovery (%) |
|
10 |
9.89 |
98.89 |
10 |
10.02 |
100.19 |
15 |
15.03 |
100.19 |
20 |
19.92 |
99.62 |
|
25 |
25.24 |
100.94 |
30 |
29.92 |
99.74 |
|
30 |
30.24 |
100.79 |
40 |
39.53 |
98.83 |
|
35 |
34.89 |
99.68 |
50 |
50.6 |
101.2 |
|
40 |
39.99 |
99.98 |
70 |
70.02 |
100.03 |
|
|
|
|
|
80 |
80.12 |
100.15 |
|
|
|
100 |
99.73 |
99.73 |
|
Mean |
|
100.08 |
|
99.94 |
||
SD |
0.75 |
0.67 |
||||
SE |
0.31 |
0.24 |
||||
RSD |
0.75 |
0.67 |
||||
Variance |
0.57 |
0.45 |
Conclusions
Silver nanoparticles could be used as a chromogenic agent for optical detection of CFD and CFP in their pure forms, pharmaceutical preparations, and in urine samples. The proposed method was simple, sensitive, accurate, green and inexpensive method. This analytical protocol may be important for quality control studies and monitoring of our analytes in biological fluids.
Acknowledgments
This work was supported by Department of Analytical Chemistry, Faculty of Pharmacy, Zagazig University, Egypt. The authors wish to express their gratitude for the support of this work.
Conflict of Interests
There are no conflicts of interests.
