Quantitative Comparison of Protein Surface Coverage on Glass Slides and Silver Island Films in Metal-Enhanced Fluorescence-based Biosensing Applications

Tsehai A.J. Grell 1, Eduardo Paredes 2, Subha R. Das 2, Kadir Aslan 1*

1 Morgan State University, Department of Chemistry, 1700 East Cold Spring Lane, Baltimore, MD, 21251, USA.

2 Carnegie Mellon University, Department of Chemistry, 4400 Fifth Avenue Pittsburgh, PA 15213, USA.

*Corresponding author. E-mail: Kadir.Aslan@morgan.edu

Citation: T.A.J. Grell et al. Quantitative Comparison of Protein Surface Coverage on Glass Slides and Silver Island Films in Met- al-Enhanced Fluorescence-based Biosensing Applications. Nano Biomed Eng. 2010, 2(3), 165-170.

DOI: 10.5101/nbe.v2i3.p165-170.

Abstract

The use of Metal-Enhanced Fluorescence (MEF) phenomenon in fluorescence-based bioassays affords for increased sensitivity to be realized by incorporating metal nanoparticles onto planar surfaces. The close-range interactions of metal-fluorophores result in increased fluorescence emission from the bioassays, which in turn affords for the detection of target biomolecules at lower concentrations. Moreover, the use of silver nanoparticles increases the photostability of fluorophores improving the detectability of fluorescence emission under prolonged use of excitation light. Although numerous reports on MEF-based biosensing applications exist, the contribution of protein coverage on Silver Island Films (SIFs) on the increased fluorescence emission was never investigated. This work presents our findings on the quantitative comparison of protein surface coverage on SIFs and blank glass slides. In this regard, identical protein bioassay for a model protein (biotinylated bovine serum albumin, b-BSA) on these surfaces is constructed and the relative extent of protein surface coverage on SIFs and blank glass slides was determined using radio-labeled biomolecules. It was found that the total scintillation counts on SIFs and blank glass slides were similar for BSA concentrations ranging from 1 μM to 1 pM, which implies that increased fluorescence in MEF-based biosensing applications is only due to metal-fluorophore interactions.

Keywords: Metal-enhanced fluorescence; Plasmon-controlled fluorescence; Silver island films; Gold nanoparticles; Quenching

1. Introduction

Metal-Enhanced Fluorescence (MEF) is a phenomenon, which describes the close-range interactions be- tween plasmon resonant metal particles and fluoro- phores. The metal-fluorophore interactions result in 1) non-radiative transfer of energy from the excited state of the fluorophores to surface plasmons of the metal nanoparticles (this energy is re-radiated as fluorescence emission at the same wavelength by the nanoparticles into the free-space), 2) in enhanced absorption of light by fluorophores due to the increased electric fields be- tween and around the metal nanoparticles, and 3) im- proved photostability of fluorophores. The size and type of the metal nanoparticles and the wavelength of emission of fluorophores are the main factors affecting the efficiency of the metal particle-fluorophore interac- tions. It is well-known that the extinction spectrum for metal nanoparticles < 40 nm and > 40 nm in size is dominated by absorption and scattering, respectively [1]. Since MEF phenomenon is related to absorption and scattering components of the metal nanoparticles,while metal nanoparticles < 40 nm in size were shown to quench fluorescence [2], enhanced fluorescence emission is observed when metal nanoparticles > 40 nm in size are used [3, 4]. In addition, the most effi- cient non-radiative energy transfer from the fluoro- phores at their excited states to surface plasmons occur when the wavelength of fluorescence emission and sur- face resonance peak of metal nanoparticles overlap [2]. The benefits of MEF phenomenon described above lend itself to the incorporation of metal nanoparticles into fluorescence-based biosensing applications, such as immunoassays [5] and fluorescence in-situ hybridi- zation assays [6]. In the current fluorescence-based biosensing applications, typically fluorophores with high-quantum yields are employed to increase the sen- sitivity of the bioassays, which results in high back- ground emission and poor fluorophore photostability. The use of metal nanoparticles (such as silver [7], gold [8], copper [9], aluminum [10]) in these applications afford for the use of low-quantum yield fluorophores, which can withstand the prolonged exposure to excita- tion light for multiple measurements to be done. In this regard, numerous reports on MEF-based biosensing applications can be found in literature [11-15]. During the peer-review of manuscripts and scientific presentations related to MEF phenomenon and MEF- based biosensing applications, the question ”How does the surface coverage of fluorophores (in fundamental MEF studies) or proteins (in MEF-based biosensing applications) on Silver Island Films (SIFs) and blank glass slides compare?” is always asked. This question arises from the fact that metal nanoparticles have 3-D structure as compared to 2-D structure of the planar surfaces such as glass slides. Subsequently, one has to consider whether the deposition of silver nanoparticles on planar slides change the surface area available for fluorophore or protein binding. Since the fluorescence emission from SIFs is significantly larger than those from blank glass slides, the contribution of fluorophore/ protein coverage to the increased fluorescence emis- sion has to be determined for accurate evaluation of metal nanoparticle-deposited surfaces for MEF applica- tions. Despite the presence of numerous publications on MEF phenomenon [16-18] and MEF-based applica- tions [15, 19, 20], the quantitative comparison of fluo- rophore or protein surface coverage on SIFs and blank glass slides was never investigated. In this work, we present the results of our investiga- tion of protein coverage on SIFs and blank glass slides. To quantitatively compare the protein coverage on these surfaces, identical protein bioassay for a model protein (biotinylated bovine serum albumin, b-BSA) is constructed, similar to the MEF-based bioassays pre- viously reported [21]. The quantitative comparison of protein coverage can only be made with labeling mole- cules that do not interact with silver nanoparticles. In this regard, a radio-labeled detector biomolecule (radio-labeled-biotinylated oligonucleotide) is employed instead of a typical fluorophore-labeled biomolecule used in MEF-based bioassays. Optical absorption spec- troscopy and scanning electron microscopy techniques were employed to characterize SIFs. After the con- struction of the bioassay on SIFs and blank glass slides, the total scintillation counts from both surfaces were measured and compared. It was found that the total scintillation counts on SIFs and glass slides were simi- lar for b-BSA concentrations ranging from 1 μM to 1 pM. These observations imply that the increased fluo- rescence emission from SIFs (and surfaces with other metal nanoparticles) in MEF-based biosensing applica- tions is due to the metal-fluorophore interactions with- out any contribution from changes in protein surface coverage. These results also apply to low affinity bio- logical interactions, such as antigen-antibody interac- tions used in immunoassays.

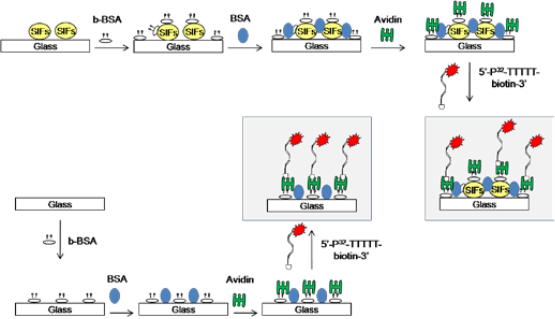

Figure 1. Schematic depiction of the protein bioassay for a model protein (b-BSA) on silver island films (SIFs) and blank glass slides.

2. Materials and Methods

Materials. 3'-biotin Controlled Pore Glass columns,phosphoramidites with labile pheoxyacetyl (PAC) pro- tecting  groups and appropriate reagents for solid phase synthesis of DNA were purchased from ChemGenes or Glen Research. Silver nitrate (>%99), D-glucose, am- monium hydroxide, sodium hydroxide, biotinamidoca- proyl-labeled bovine serum albumin (b-BSA), BSA, avidin, Silane-prep glass microscope slides were pur- chased from Sigma-Aldrich Chemical Co. (Milwaukee, WI). Nucleic acid synthesis and preparation. Solid phase oligonucleotide synthesis was performed on a Mer- Made 4 instrument (Bioautomation). Synthesis and deprotection of 3'-biotinylated-T5 (5'-TTTTT-biotin-3’) was conducted using standard protocols for PAC pro- tected amidites as recommended by the manufacturer. 5'-end radiolabeling was conducted with T4 PNK using γ-32P ATP using standard protocols. Radiolabeled 3'-biotinylated-T5 (5'-[32P]-TTTTT-biotin-3’) was purified by electrophoresis on 8M urea polyacrylamide gels. The DNA band was excised and eluted overnight at 4˚C in 10 mM Tris-0.1 mM EDTA buffer (pH 7.5) and desalted on a Waters C18 Sep-Pak column. Deposition of Silver Island Films (SIFs). SIFs were deposited onto silanized glass slides using Tollen’s reaction scheme. In this regard, first a solution of silver nitrate (0.5 g in 60 ml of deionized water) was placed in a clean 100-ml glass beaker. While stirring at the quickest speed (on a Corning Heater/Stirrer), 200 μL of freshly prepared 5 % (w/v) sodium hydroxide solution is added, which results in the formation of dark brown precipitates of silver particles. The precipitates were re- dissolved by 2 ml ammonium hydroxide. The resultant clear solution is cooled down to 5°C by placing the beaker in an ice bath, followed by soaking the silanized glass slides in the solution. After 2 min, a fresh solution of D-glucose (0.72 g in 15 ml of water) is added. Sub- sequently, the temperature of the mixture is then warmed to 30°C. As the color of the mixture turns from “yellow-green” to “yellow-brown” and the color of the slides become green (in 2 min), the slides are removed from the mixture. SIFs were washed with water and sonicated for 30 seconds at room temperature. SIFs were then rinsed with deionized (DI) water several times and air-dried. A cross-section (12x40 mm2) of the blank glass slides and SIFs were cut and kept in DI water until further use. All glassware used was treated with “piranha solu- tion” (3:7 v/v; 30% hydrogen peroxide/concentrated sulfuric acid: CAUTION! piranha solution reacts vio- lently with most organic materials and should be han- dled with extreme care) and rinsed with deionized wa- ter at least three times before use. Construction of model protein assay on SIFs and blank glass slides. In order to quantitatively compare the protein surface coverage on SIFs and blank glassslides, identical bioassay for a model protein (b-BSA)was constructed on SIFs and blank glass slides (without silver nanoparticles). Figure 1 shows the schematic depiction of the bioassay for model protein b-BSA. In the first step, a solution of b-BSA with a range of bulk concentrations (1 μM to 1 pM) was incubated on SIFs and blank glass slides at room temperature for 20 min. Unbound b-BSA was removed by rinsing the surfaces with deionized water several times. The surfaces were then treated with 5% (w/v) BSA for 20 min to reduce the non-specific binding of avidin. Unbound BSA was removed by rinsing the surfaces with deionized water several times. In the next step, a 1 mg/ml solution of avidin was incubated on the surfaces for 20 min. Un- bound avidin was removed by rinsing the surfaces with deionized water several times. Subsequently, the sur- faces were coated with 100 μL of a 1 μM solution of 3'- biotinylated-T5 (~0.015% 5'-32P labeled) in autoclaved, deionized (18.2 MΩ) water with a 1.65 mL pipette tip. Samples were kept at room temperature for 20 min to allow for biotin binding prior to rinsing. The glass slides were washed three times with 1 mL aliquots of water. The glass slides were placed on liquid scintilla- tion vials to which ~5 ml of scintillation solution was added. Scintillation measurements were conducted on a LS 6500 Beckman Coulter liquid scintillation counter in triplicate. Each sample slide was done in duplicate. Scanning Electron Microscope (SEM) images of SIFs were obtained at the Core Imaging Facility of the University of Maryland Dental School. Real-color pho- tographs of SIFs and blank glass slides were taken us- ing a 5 mega-pixel digital camera.
