The Application of Lateral Flow Immunoassay in Point of Care Testing: A Review


Kan Wang 1,2*, Weijian Qin 1, Yafei Hou 1, Kun Xiao 1, Wenqiang Yan 1


1 Department of Instrument Science and Engineering, School of Electronic Information and Electrical Engineering, Shanghai Jiao Tong University, Shanghai 200240, China.

2 Shanghai Engineering Research Center for Intelligent diagnosis and treatment instrument, Shanghai 200240, China.


* Corresponding author. E-mail: wk_xa@sjtu.edu.cn


Received: Sep. 18, 2016; Accepted: Sep. 20, 2016; Published: Sep. 27, 2016.


Citation: Kan Wang, Weijian Qin, Yafei Hou and Kun Xiao, The Application of Lateral Flow Immunoassay in Point of Care Testing: A Review. Nano Biomed. Eng., 2016, 8(3): 172-183.

DOI: 10.5101/nbe.v8i3.p172-183.


D:\xwu\Nano Biomedicine and Engineering\Articles for production\排版\8(3). Wang Kan\fig\wk.jpg

Kan Wang was born in 1979 and obtained her Ph.D. in biomedical and engineering from The Forth Military Medical University in 2008. After a postdoctoral fellowship at Shanghai Jiao Tong University in 2008, she was appointed as associate researcher of School of Electronic Information and Electrical Engineering, Shanghai Jiao Tong University in 2016. Her research interests cover nanotechnology development of early cancer detection and screening equipment, nonmaterial molecular imaging and biocompatibility evaluation, and biological tissue impedance spectrum characteristics.




Point-of-care testing (POCT) is essential for providing a rapid diagnostic result in a prompt on-site diagnosis and treatment. A quick analysis time and a high sensitivity, with a sample-to-answer format, are the most important features for current POCT diagnostic systems. This review covers recent advances in POCT technologies with an emphasis on demonstrated and commercially available POCT diagnostic systems with laboratory quality using lateral flow immunoassay (LFIA). The system includes the integration of nanoparticles (NPs) in lateral flow test strips (LFTSs) and the mechanism through which particles improve the analytical performance of the fabricated strips. Several examples of NP-based LFTSs were selected to illustrate novel concepts or devices with promising applications as screening tools and superior alternatives to existing conventional strategies in clinical analysis, food safety, and environmental monitoring. In each analyte category, detection methods, configuration of LFIA modules, and advantages of POCT systems are reviewed and discussed along with future prospects. This review also discusses novel signal-enhancement strategies, optimal reader systems, and multiplex design prototypes, which have been employed for highly sensitive multiplex assay of LFTSs.


Keywords: Lateral flow immunoassay (LFIA); Point-of-care testing (POCT); Nanoparticles (NPs)



Point of care test (POCT) are prevalent in the clinical field, where the goal of POCT is to develop a miniaturized, portable, intelligent self-contained system to assay biomarkers using complex samples. The lateral flow immunoassay (LFIA) is considered to be one of the most commercially feasible analytical tools for POCT, where it can perform a medical test quickly at the patient’s location. Another benefit is that the test can be performed without sample pretreatment or the need for trained personnel and a laboratory. The user simply requires a drop of the sample and the process is driven via capillary force for fluid transport and delivery without external power. Commercial applications of LFIA mainly use colloidal gold as labels for diagnostics in food quality monitoring, drug testing, and environmental monitoring, such as detecting Enterobacteriaceae in food and water [1], medroxyprogesterone acetate residues [2], carbon black in a detection system for Dengue fever [3], and the detection of human chorionic gonadotropin in pregnancy testing [4]. This system exploits the color characteristics of markers and chromatographic separation to allow qualitative and semi-quantitative detection by the naked eye. However, these methods cannot satisfy clinical requirements because accurate quantitative detection is needed. At present, fluorescent lateral flow test strips (LFTSs) are undergoing accelerated development, where the intensity of the response can be detected quantitatively using appropriate test equipment. LFIA based on enzyme-catalyzed chemiluminescence detection has been used for analyzing trinitrotoluene in forensic and environmental applications [5], as well as for detecting Cry1Ab with an amplifier signal value [6]. LFIA based on quantum dots (QDs) has been developed for the detection of tumor markers [7,8], mercury ions (Hu et al. 2014), avian influenza virus [9], pesticides and nerve agents [10]. This review focuses on the application of LFIA in POCT, including the integration of nanoparticles (NPs) in LFTSs and the mechanism through which particles improve the analytical performance of the fabricated strips. This review also discusses novel signal-enhancement strategies, optimal reader systems, and multiplex design prototypes, which have been employed for highly sensitive multiplex assay of LFTSs. This review selects several examples of NP-based LFTSs to illustrate novel concepts or devices with promising applications as screening tools and superior alternatives to existing conventional strategies in clinical analysis, food safety, and environmental monitoring.


Applications of the Lateral Flow Immunoassay

LFIA keeps the advantage of the special binding between antigen and antibody in immune test technology. Even though the technology takes the immune reaction on the glass fiber and nitrocellulose membrane without departing the binding markers and markers free, the method eliminates the tedious pipetting, washing step. Therefore, its operation is simple and fast (under 20 min getting the result) and the staff don’t need training, even without any equipment or just with simple devices. It is very suitable for field testing and now widely used in a variety of fields of medicine, agriculture, animal husbandry and veterinary, environmental, food and supervision.


Application in the medicine field

Immunochromatographic analysis technology is firstly used to test the human chorionic gonadotropin (HCG) and this approach has been very mature and widely used in women pregnancy testing. In clinical diagnosis, immunochromatographic analysis technology possesses a very important significance and is a typical POCT, which is fast and thus allows timely rescue of lives. In the immunochromatographic assay, myoglobin (Mb) [11], CK-MB [12], troponin (cTnI) [13] and troponin T (cTnT) [14], etc. are often used to help diagnose AMI biochemical markers by docoters. Immunochromatographic analysis technology also gets widely attention in testing fecal blood field [15]. Clavijo, et al. [16] utilized immunochromatographic analysis technology to test Brucella specific antibody in serum, through experimental comparison, the detection sensitivity was higher than traditional ELSIA detection method.


Detection of pathogenic microorganisms

Takeda utilized the immune colloidal gold chromatography strip to directly test the E. coli in the water sample, to compare ELISA with the concordance rate of 87.2%, and to compare the culture method with the concordance rate of 89.10%. The chromatography cost 5 minutes, which was shorter than any other test method. In addition, the immunochromatography test technology was also used to detect pathogens: Vibrio cholerae, adenovirus, hepatitis B surface antigen, and H. pylori antigens, ect. Immunochromatographic techniques can detect microbial indicators of various suspicious for patients easily, quickly and with a low cost.


Detection of human hormone or related proteins

Since the first use in testing HCG, researchers have developed many different immunechromatography system to detect different hormones and protein targets. For example, Osikwicz utilized colloidal selenium to test HCG; Hedstrom utilized the immunechromatography to test urine trypsinogen of patients with acute pancreatitis. Li utilized avidin-biotin immunechromatography technique to detect the cTnI. Immunechromatography technique of disease-related proteins comparing with the previous chemiluminescent or other means of detection have greatly improved the detection rate which is very important for timely diagnosis and treatment.


Parasitic disease diagnosis

Many parasitic diseases bear epidemic, highly infectious and other characteristics. There is a great need for simple, rapid, efficient, inexpensive diagnostic methods used on a massive scale. Thus, the immune chromatographic techniques in the diagnosis of parasitic diseases has also been increasingly widely used. Currently, for plasmodium, schistosomiasis, leishmaniasis, amoebiasis, filariasis, trypanosomiasis, cryptosporidiosis [17] immunochromatographic diagnostic methods have been established.


Blood and urine drug monitoring

Buecher using colloidal gold as a label has detected in the urine of illicit drugs(opiatebarbiturateTHCamphetaminecocainebenzodiazepinePC). Detection sensitivity and specificity of that test method is very consistent with gas chromatography / mass spectrometry (GC / MS) and EMIT (enzyme multiplied immunoassay technique). Immunochromatographic analysis technology for application has widely researched in our country. For example, Zhao, et al. utilized Chlamydia trachomatis immunochromatographic strip to monitor the Chlamydia trachomatis (cT), UU (uu) and other infections incidence and to analyze their sensitivity and resistance to antimicrobial drugs; Li, et al. [18] have researched the application of Immunochromatographic analysis technology in rapid detection of influenza viruses. In addition, hepatitis B surface antigen [19], Brucella[20]and Helicobacter pylori antigens[21] and other pathogens detection are also the hot researcher spot of immunochromatography technology. Yang Yonghong[22] etc utilized mycobacterium secreted protein antigen by using nitrocellulose membrane-coated to detect serum and pleural effusion TB antibody.


Drug detection

Worldwide prevalence of drugs is increasingly becoming an important factor threatening people's health. Immunochromatographic detection of drugs have been widely used, such as cocaine, marijuana, coffee, heroin and other aspects, and there are already many commercialized drug testing kits. The recent quantitative detection method of drug is accurate, but the instrument is expensive and need strict experimental condition. Researchers at home and abroad are both looking for a simple, fast and accurate testing method. Gao Yueming et al. developed an immune colloidal gold based rapid drug quantitative testing method. For the content of some material in the human body constently change within a certain range, the results only showed positive or negative, which was unsatisfactory. Some researchers succeed in quantitative detection of theophylline and cholesterol in blood which based on enzyme colorimetric and realized by comparing chromogenic height on test strips with standard curve. Both clinical medicine, veterinary drug residue and drug detection are in urgent need of realizing simple and rapid quantitative detection.


Live animal quarantine, meat distribution process monitoring, and testing of pesticides or veterinary drugs residues in food

Immunochromatographic method is widely used in antigen or antibody detection in animal quarantine, such as swine fever, PRRS, parvovirus, infectious bursal disease, Newcastle disease, rabies and other infectious pathogens. With the development of industrialization, more and more pesticides, hormones, antibiotics are used for crop cultivation and animal husbandry. The residues of harmful substances in food can seriously affect people's health and life. Because of the large circulation of food, it is imperative to use a simple, fast, and low cost detection method. Currently immunochromatographic technology has been applied to a large number of food safety testing, such as detection of antibiotic residues, pesticide residue testing, hormone testing.


Environmental detection

For various reasons, there may be harmful microbes, hormones and other substances in the environment, and timely detection of suspect (water or air) is necessary. Currently there have been numerous studies on the environment immunochromatographic detection. There is a growing concern about the impact of environment changes to human health, those previously time-consuming testing methods will be increasingly replaced by simple and economical immunochromatographic method. So far, the immunochromatographic detection technology is applied to various areas of our lives. But immunochromatographic technology is not a panacea, there are many areas need to be developed and researched; research on immune chromatography technology in various application areas caused concern of many scholars, business and ongoing innovative research, so that this technology can be used to serve human life better.


Research on the Detection System

The development of equipment is processing widely about immune chromatography that can be used to achieve the purpose of qualitative detection and improve the accuracy of test and standard operation. Complete detection system can aid operator to get more accurate results and avoid interference of environment. Compared with the literature on ways of immune chromatography detection, the article of concerned device is fewer than the former. Qualitative test equipment developed by German ESE company is illustrated in Fig.1. And the device provided stimulated luminescence can observe the emission light of a fluorescent strip on the strip, but does not have function of quantitative detection [23]. Compared with commercial products of qualitative test equipment which is mainly based on the colloidal gold labeled test strip, detection about quantitative device is fewer both in domestic and abroad. A large number of companies have invested a lot of researches in the semi quantitative and quantitative detection of the Nano gold immune chromatography test, such as the United States of America's BBI, Europe's Mannheim Boehringer company and Nycomed company. The test strip based on technology of Nano gold immune chromatography of Troponin and myoglobin about diagnosing acute myocardial infarction was launched by Boehringer Mannheim company. Simple measure devices being used to march these strip had passed through clinical testing. The precision and accuracy were consistent with the requirements of quantitative determination [24]. Chandler, et al. [25] realized quantitative detection about Nano gold immune chromatography test strip through the concentration of ladder type being displayed in the test paper and then the color signal of the strip being converted to digital signal by a portable instrument. A CD-RO optical detector was designed by Suhyeon, et al. [26] for the quantitative detection of HBV, and the mechanical components and optical probe of the detector are illustrated in Fig.2. These researchers realized a cheap and fast detective system via the test sample transmitted by the motor. Portable Equipment used to Ultra-sensitively detect for protein markers and invented by Li, et al. [27] made quantum dots to be achieved on the test strip quantitative detection that Nitrification ceruloplasmin detection range of is up to 1ng/mL. Zou, et al. [28] used system of quantum dot notation to achieve a quantitative detection of trichloropyridinol. MagnaBioSciences company developed MAR magnetic strip for detection of the immune system. It is a huge upgrade and challenge to the traditional Nano-gold-labeled or labeled latex particles such as immunechromatographic strip [29]. The detection system (Fig.3) directly tests strip in the corresponding three-dimensional magnetic marker area magnetization to get higher detection sensitivity than traditional methods via magnetizing target molecules of 60~380nm superparamagnetic Nano-magnetic beads mark by oscillating magnetic field. The device has received a lot of attention since the advent, and a large number of applications based on the detection of the detection system has been published in vitro. Because the method is different from the traditional method based on the color depth discrimination that is easy to be interfered by other colored material in the sample and the sensitivity is high [30-34,39]. The quantitative study of the immune system started late in China, and it mainly concentrated on the quantitative detection of gold Nano gold immune chromatography test strip. Chinese Academy of Sciences, Guangzhou Institute of biomedical and Health Research Institute made immune layer technology apply to the detection of DNA binding protein, and biological sensor of using gold nanoparticles can be completed within 10 minutes of rapid detection [35]. The embedded reading instrument (Fig.4) developed by Nankai University has high resolution CMOS image acquisition, and the detection accuracy is 1ng/mL, the variation coefficient (CV) is less than 3% [36]. CAS Institute of Chemistry detected pesticide residues by using magnetic Nanoparticles. Determination of chromatography strip optical density and scales for oxygen concentration of the corresponding curve detection limit is 1.7 mg/mL [37] (Fig.5). Shanghai Institute of Optical Precision Machinery arrived the purpose of quantitative detection of the gold tag strip through reflection photometer. They deduced the quantitative detection of CTnI equation. Correlation coefficient of the measured sample concentration and optical detection value is 0.989. The variation coefficient is less than 5% as shown in Fig.6 for the reflex photometer structure [38]. Fuzhou University developed testing equipment of HCG based on CCD colloidal gold marked strip. They got correlation coefficient is up to 0.9975 and 0.9914 [39] respectively through the two groups of different method about concentration of sample and the detection of optical density value. Supporting quantitative detection equipment about the magnetic strip and the quantum dots strip is few in domestic. Shanghai Jiao Tong University developed the testing equipment based on CCD technology of quantum dots immune chromatography test paper [40-43]. The device has realized early gastric cancer detection, such as the CagA, urease and quantitative detection, CEA, CA724 and other markers and obtained the medical device registration certificate (Fig. 7). At the same time, they developed a portable immune layer chip detector based on embedded technology (Fig.8) [44]. The system based on confocal imaging principle achieved a more accurate data collection and analysis for quantum dots immune chromatography test paper article on the fluorescent signal through the high performance LED point light source, low noise and high precision of photoelectric diode and mechanical movement module, positioning module. The single test time is about 1.5 ~ 2 minutes, with the fluorescent sensitivity of 0.4 molecular/μm2, and the spatial resolution is 1000 μm. The application of embedded system greatly reduces the equipment volume and increase the portability. The system can generte test results more rapidly, save more effective treatment time, and thus save the patient's life in the process of major disease rescue. Portable devices can avoid the defects of large equipment, and allow people to do basic preventive screening at home. Hence, thewhole equipment is more suitable for the bed testing requirements in the community survey. Recently, smartphone-based dual-modality imaging system [45] was developed by us, which could quantitatively detect  color or fluorescent lateral flow test strips and be operated anywhere at any time, Fig.9. The white and ultraviolet light of optical system was designed and could be changed according to the different kinds of strips. The Sobel operator algorithm was used in the software, which improved greatly the ability to distinguish the test area from the background boundary information. By extracting the components from the Red, Green and Blue formats of the color strips or only Red format of the fluorescent strips, it achieved high-signal intensity and sensitivity. Fifty samples were used to evaluate the accuracy of this system respectively; the ideal detection limit of the system were calculated separately from detection of HCG and CEA, and then kept the high stability. The results suggested that smartphone-controlled dual-modality imaging system for the next-generation of portable and cost-effective platform provided different kinds of POC diagnosis.


D:\xwu\Nano Biomedicine and Engineering\Articles for production\排版\8(3). Wang Kan\fig\wkt1.jpg

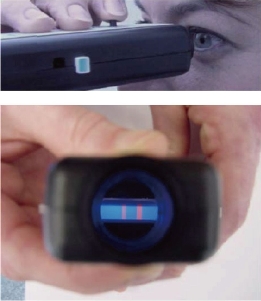

Fig.1 Germany ESE test strip qualitative detection equipment [23].


D:\xwu\Nano Biomedicine and Engineering\Articles for production\排版\8(3). Wang Kan\fig\wkt2.jpg

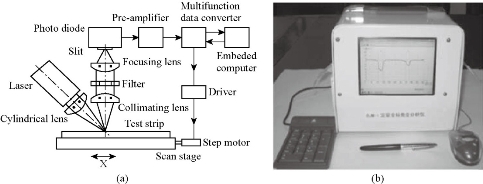

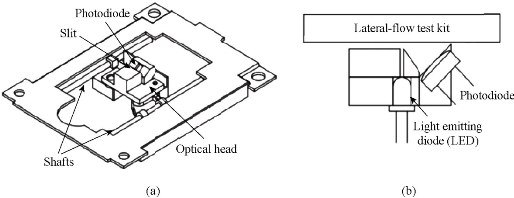

Fig. 2 (a) Detector; and (b) Optical part [26].


D:\xwu\Nano Biomedicine and Engineering\Articles for production\排版\8(3). Wang Kan\fig\wkt3.jpg

Fig. 3 Immune magnetic strip detection system MAR [29].


D:\xwu\Nano Biomedicine and Engineering\Articles for production\排版\8(3). Wang Kan\fig\wkt4.jpg

Fig. 4 Embedded detection system [36]


D:\xwu\Nano Biomedicine and Engineering\Articles for production\排版\8(3). Wang Kan\fig\wkt5.jpg

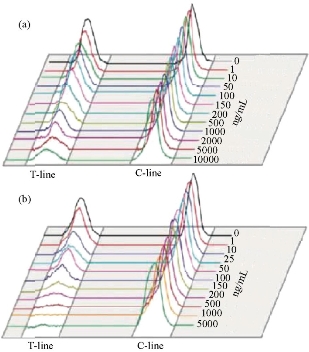

Fig. 5 The corresponding relationship between different concentrations of oxygen and phosphorus methyl and optical density [37].


D:\xwu\Nano Biomedicine and Engineering\Articles for production\排版\8(3). Wang Kan\fig\wkt6.jpg

Fig.6 Structure diagram of reflected light [38].


D:\xwu\Nano Biomedicine and Engineering\Articles for production\排版\8(3). Wang Kan\fig\wkt7.jpg

Fig. 7 Immune chromatography chip detector [40].


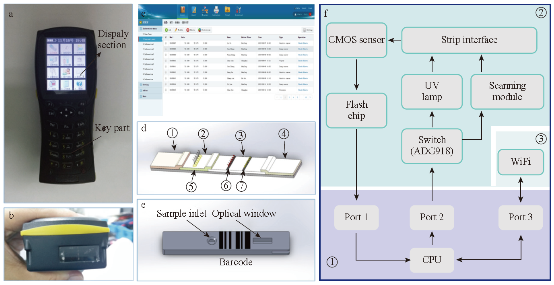

Fig. 8 Portable biological immune chromatography detector [44].


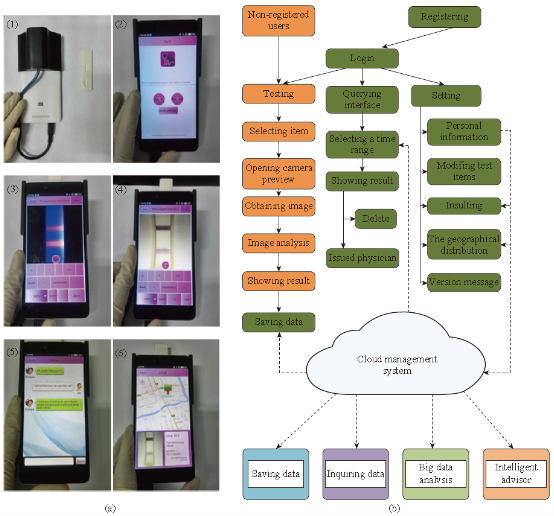

Fig. 9 (a) (1) Back view of testing equipment and the strip shell; (2) The main menu of the software; (3) The fluorescent strip testing displaying (CEA); (4) The color strip testing displaying (Colloidal strip for testing HCG); (5) The robot service through chat; (6) The location distribution of the test result in map. (b) Flow diagram of the device software [45].


Research on Improving Sensitivity

The improvement of detection sensitivity is mainly through changing the markers, adding color enhancement agent, amplifying immune response, integration of different NPs and so on. Currently, the analytical sensitivity and/or limit of detection (LOD)of LFICS can be mainly enhanced by using three types of NPs as alternative labels. (Fig. 10) These types include colored [e.g., GNPs, carbon NPs(CNPs), and colloidal selenium NPs (SNPs)], luminescent [e.g., quantum dots(QDs), up-converting phosphor NPs(UCPs), and dye-doped NPs], and magnetic NPs (MNPs) [46-48]. Horton et al. [48] used liquid sliver to strengthen the dyeing result after the colloidal gold was captured by the test line when testing mouse IgG. The sensitivity increased by 100 times. Muler et al. introduced avidin and biotin to immunochromatography system to detect fetal cardiac troponin T. One avidin has four binding sites which can bind with the biotin. So the signal intensity could be amplified greatly. Some researchers utilized lipidosome as labels which offer higher sensitivity owning to its strong plasticity [50], ability to set multiple antigens and antibodies in the membrane and to contain plenty of indicator in water phase space inside the membrane. Gred, et al. used europium microparticles as labels in immunochromatography system. The concentration of eosinophilic and neutrophils in blood can be reflected by the lipocalin in eosinophilic and neutrophils. Magnetic nanoparticals, as a new material developed in recent years, have a higher sensitivity in immunochromatographic assay through testing magnetism than ordinary luminescence method [51].


D:\xwu\Nano Biomedicine and Engineering\Articles for production\排版\8(3). Wang Kan\fig\wkt10.jpg

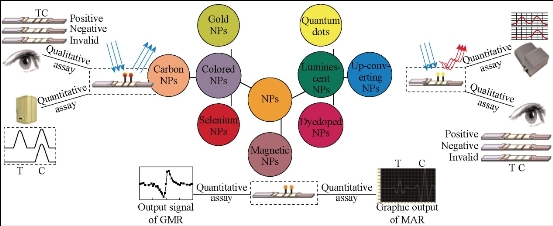

Fig.10 Schematic illustration for various ultrasensitive LFICS detection from qualitative to quantitative [46].


Development of multivariate analysis

In some cases, we need to test a variety of index to make a comprehensive judgement. So immunochromatographic assay is also developing head for the direction of multivariate analysis. Analyzing several substances in one strip which could not only improve detection efficiency but also lower testing costs. Besides, it had high application value for testing index which was well suited for multivariate analysis. For example, hepatitis B could be diagnosed by testing PreS1PreS2HBsAgHbeAg and others. A variety of hormones, allergens and cytokines could be analyzed according to different testing requirements. Tjitra, et al., using immunochromatographic assay, developed a testing strip which can simultaneously analyze plasmodium falciparum and plasmodium vivax; it could good sensitivity, specificity and clinical application value. In Fig. 11, Buechler, et al. utlized one membrane sprayed several T lines and succeeded in the simultaneous detection of seven forbidden drug in urine [51]. Sterling, et al. employed different membranes and enzymes in different places of the membrane to separate and make the analyte visualized; it could simultaneously test hemoglobin, glucose and cholesterol in blood. In addition, to detect multiple samples simultaneously, the traditional method was modified by designing several test lines in a single strip as described earlier. Corstjens, et al. developed a multiplexed UCP-based LFICS for the detection of antibodies against Mycobacterium tuberculosis, hepatitis C virus, and human immunodeficiency virus [53]. An interesting device with a 10 channel LFICS utilizing UCPs technology was also employed for the simultaneous detection of different antibodies against Yersinia pestis [54].


D:\xwu\Nano Biomedicine and Engineering\Articles for production\排版\8(3). Wang Kan\fig\wkt11.jpg

Fig.11 Principle of multiplex lateral flow immunoassay [52].


D:\xwu\Nano Biomedicine and Engineering\Articles for production\排版\8(3). Wang Kan\fig\wkt12.jpg

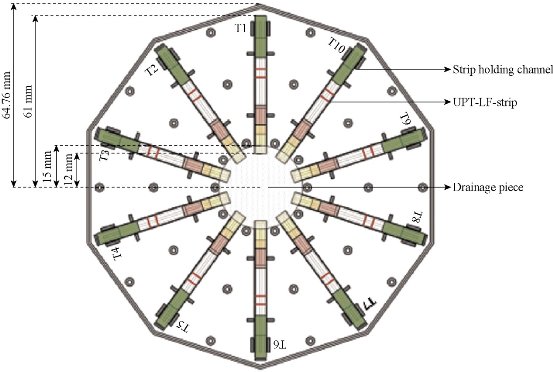

Fig.12 The sketch map of 10 channel LFICS based on UCP [54].


D:\xwu\Nano Biomedicine and Engineering\Articles for production\排版\8(3). Wang Kan\fig\wkt13.jpg

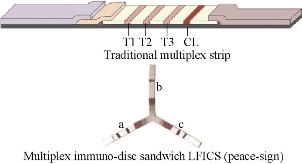

Fig.13 Schematici llustration of multiplex detection model: traditional LFICS and “peace-sign” LFICS and results for detection of Staphylococcus aureus and Pseudomonas aeruginosa using (a) Staphylococcus aureus; (b) Pseudomonas aeruginosa; and (c) Staphylococcus aureus+Pseudomonas aeruginosa [55].


Development from qualitative to quantitative detection

Immunochromatographic assay has the characters of easy operation, rapid, specific and clear result, easy to judge and save, and no need of any instrument. As shown in Fig. 12 & 13, from top to bottom are masculine, feminine and invalid test results. Obviously, qualitative detection is insufficient in many occasions. Many test strips can only qualitatively analyze whether female is pregnant or not, but threatened abortion, ectopia, drug drainage, some obstetrical and gynecological diseases and postoperation treatment all need tracking the quantitative change of hCG and quantitative detection of hCG. Recently, there are plenty of researches focusing on qualitative/quantitative immunochromatographic assay. Quantitative detection not only has significance in diagnosis of acute disease timely, but also is a very important method for the relevant quality inspection departments to perform health standards. Tippkötter, et al. [56] established a relation curve between color vaules of the strips and the concentration of the analytes in the rapid test of the concentration of microcystin. In the detection of clinical medicine, quick and easy quantitative detection could help doctors know the pathogenetic conditions of patients in time and implement the treatment, which has vital importance in treating acute diseases such as myocardial infarction. The realization of quantitative detection is not only based on the preparation of strips, but is also concerning the development of the detection instrument. At present, the main research interest on quantitative testing is using photoelectric detection method to transmit the optical signal to electrical signal and obtaining a digital signal, and thus to get the quantitative detection result. On the other hand, magnetic nanoparticles based LFTS could be analyzed through magnetic flux testing equipment to obtain quantitative results.


D:\xwu\Nano Biomedicine and Engineering\Articles for production\排版\8(3). Wang Kan\fig\wkt14.jpg

Fig. 14 The relation curve between color values of the strips and the concentrations of microcystin [56].


D:\xwu\Nano Biomedicine and Engineering\Articles for production\排版\8(3). Wang Kan\fig\wkt15.jpg

Fig. 15 Strip reader [57].



In general, LFICS is a rapid screening system used in various fields, such as medicine, food safety, and environmental monitoring, because of its outstanding advantages, including low cost, high speed, portability, and the lack of need for complicated equipment and technical expertise. Nevertheless, the performance of this system should be improved with respect to LOD or sensitivity, quantitative determination, and multiple/simultaneous detection. Moreover, novel designs, such as the use of various NPs for LFICS, have been reported in recent literature. It also has a potential to accomplish complex diagnostic assays, e.g. nucleic acid short tandem repeat fingerprinting, as a sample to answer format for POCT by integrating all the functional modules into a microfluidic lab-on-a-chip. These advantages of the technology thus encourage extensive research efforts toward clinical diagnostic POCT for detecting various types of analytes such as proteins, cells, nucleic acids and metabolites.
